Set Volume

Category: Control

Set volume layer template changes the audio volume of a section or a layer.

Variables

Default

• Mode: select the volume of what you'd like to adjust. Options are:

  • Section Volume: adjusts the volume of the selected section.

  • Layer Volume: adjusts the volume of the selected layer.

• Master volume: set the new value of the master volume fade. 1 = 100% (fully on), 0 = 0% (silent).

• Speed: adjust the speed of the adjustment. 1 means real-time. If you set it to really small values, like 0.2, the fade value will adjust slowly towards the target value.

• Auto rename: select if you want the layer's name to display the state of the variables.

Workflow

1. Inserting the layer

Through the right click menu

Right click in the Timeline, select Control category and choose Set Volume layer.

3. Set up the layer

Set up the layer's variables the way you want.

Good to know: setting Speed to lower than 1 can be useful if the Master volume value is jumping significantly and you'd want to smooth the jumps.

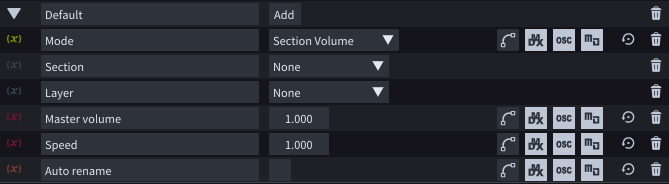

Layer Layout
