Calibrating OptiTrack cameras with active or passive markers

Required components

Cameras

For illustrative purposes only.

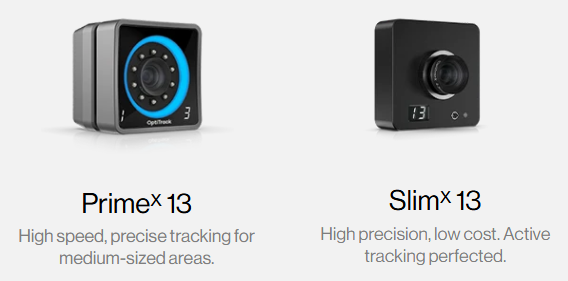

OptiTrack Primex13 or Slimx13 camera.

Please note, if you are using Slimx13 camera, you can only use Active markers.

Please note, you need a separate OptiTrack license per every camera to be able to use this feature.

Passive markers

For illustrative purposes only.

Passive OptiTrack markers (only if you are using Primex13 cameras).

Active markers

For illustrative purposes only.

OptiTrack Active Tags with LEDs.

Active BaseStation

For illustrative purposes only.

OptiTrack Active BaseStation is required if you are using Active Tags.

Please contact us before making a purchase.

Accessories

• PoE Switch

Installation of markers

The images below show an example of active and passive marker installation into a 3D print of a mask.

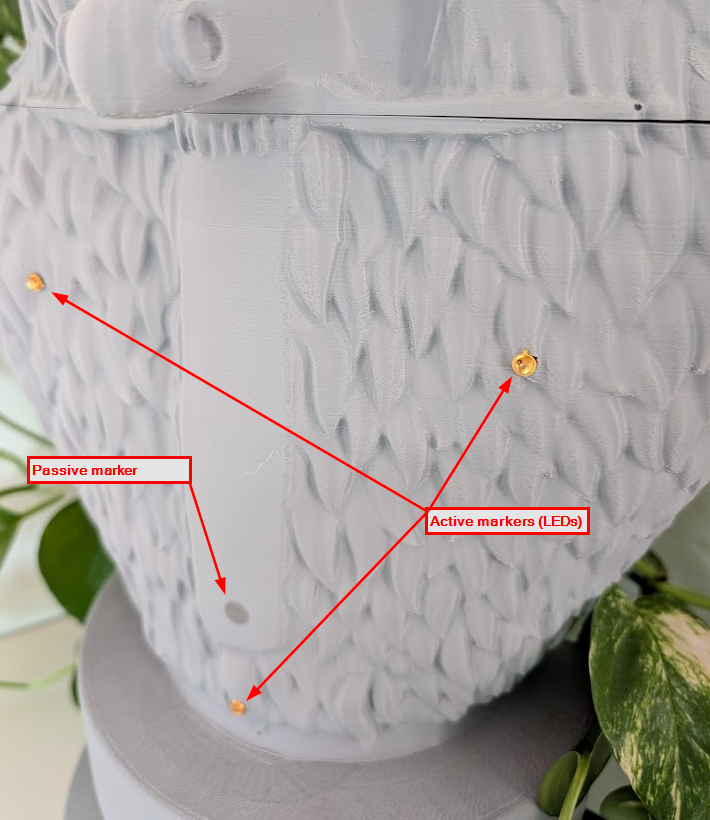

Front side.

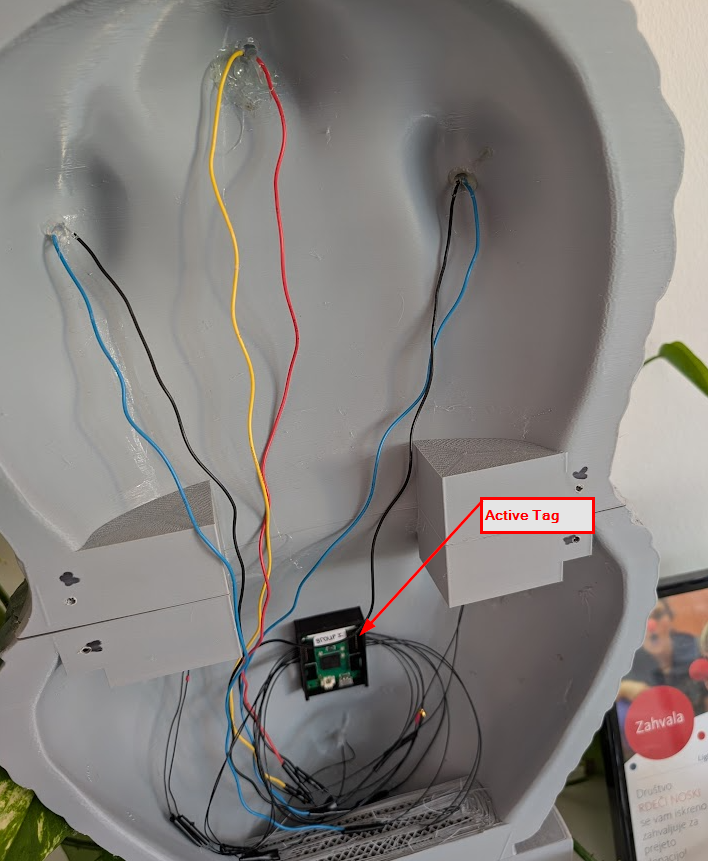

Back side.

Hardware setup process

• Sometimes the firmware needs to be updated and Active Tags re-programmed (more info soon).

• Antivirus software may interfere with Motive's communication with the Markers

Calibration process

Coming soon...
