Go to Marker

Category: Control

Go to Marker layer template triggers a jump of a specified Timeline to a specified Marker.

Variables

Default

• Mode: select one of the following modes:

  • Go to selected: jumps to a selected marker.

  • Go to next: jumps to the next marker in the timeline

  • Go to previous: jumps to the previous marker in the timeline

• Timeline: select the timeline where you want to execute the jump

• Marker: select the marker to which you want to jump to. This value is ignored if Mode is anything other than Go to selected.

• Auto rename: select if you want the layer's name to display the state of the variables.

• Print to console: if checked the layer is goint to print to the Console window a message everytime a jump happens.

Workflow

1. Inserting the layer

Through the right click menu

Right click in the Timeline, select Control category and choose Go to Marker layer.

3. Set up the layer

Set up the layer's variables the way you want.

Good to know: if you open the Layout of this layer, you can further modify what this layer does.

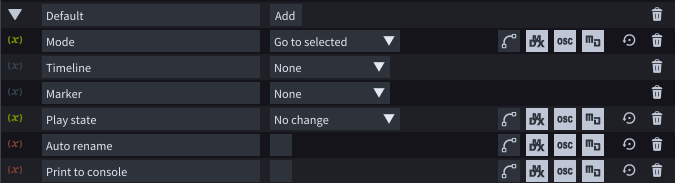

Layer Layout
