# PSN

LightAct offers both sending and receiving devices nodes. Each node requires a **Multicast address** information.

### PSN Sender Device Node

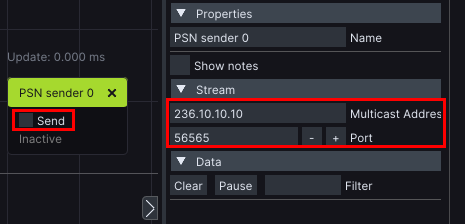

To start sending PSN information insert a **PSN Sender** device.

<div align="left"><img src="https://3312042618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9sVaJpWJhPbmscipukhh%2Fuploads%2Fgit-blob-bdde788a1cd9ad6a559e201a3066153229725691%2FPSN%20sender%20device.png?alt=media" alt=""></div>

On the right side, under the *Stream*, configurable properties for specific devices will be shown. After you configure them, check **Send** checkbox inside the device node.

### Send PSN in Layer Layouts

To set the information sent by *PSN Sender* node in LightAct, you need to create a **Send PSN** node in the layouts.

Choose **PSN Sender** device in a **Device** dropdown menu, or connect **Device reference** node to this input, and you are ready to go.

![](https://3312042618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9sVaJpWJhPbmscipukhh%2Fuploads%2Fgit-blob-65c381efa268c1a1c53475c5c5b3faa5c84e495c%2FPSN%20sender%20layer%20node.png?alt=media)

*Send PSN* node is sending **Name** and a number of vec3's: **Position, Orientation, Speed, Acceleration** and **Target position**. One way of connecting the node is shown below:

![](https://3312042618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9sVaJpWJhPbmscipukhh%2Fuploads%2Fgit-blob-c03e893b2f0e5b61475db0c6cc75511416304288%2Fimage.png?alt=media)

### PSN Receiver Device Node

To start receiving PSN information insert a **PSN Receiver** device.

![](https://3312042618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9sVaJpWJhPbmscipukhh%2Fuploads%2Fgit-blob-944c942f26296f6bb109e6bdb9c5074a852a96d6%2FPSN%20receiver%20device.png?alt=media)

On the right side, under the *Stream*, configurable properties for specific devices will be shown. After you configure them, check **Listen** checkbox inside the device node.

### PSN Receiver Device Node

To start receiving PSN information insert a **PSN Receiver** device.

![](https://3312042618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9sVaJpWJhPbmscipukhh%2Fuploads%2Fgit-blob-944c942f26296f6bb109e6bdb9c5074a852a96d6%2FPSN%20receiver%20device.png?alt=media)

On the right side, under the *Stream*, configurable properties for specific devices will be shown. After you configure them, check **Listen** checkbox inside the device node.

### Read PSN in Layer Layouts

To use the information read by **PSN Receiver** device node in LightAct, you need to create a **Read PSN** node in the layouts.

Choose **PSN Receiver** device in a **Device** dropdown menu, or connect **Device reference** node to this input, and you are ready to go.

![](https://3312042618-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9sVaJpWJhPbmscipukhh%2Fuploads%2Fgit-blob-076b317d8a2376f5eec54e82941c02e4041b5edc%2FPSN%20receiver%20layer%20node.png?alt=media)
